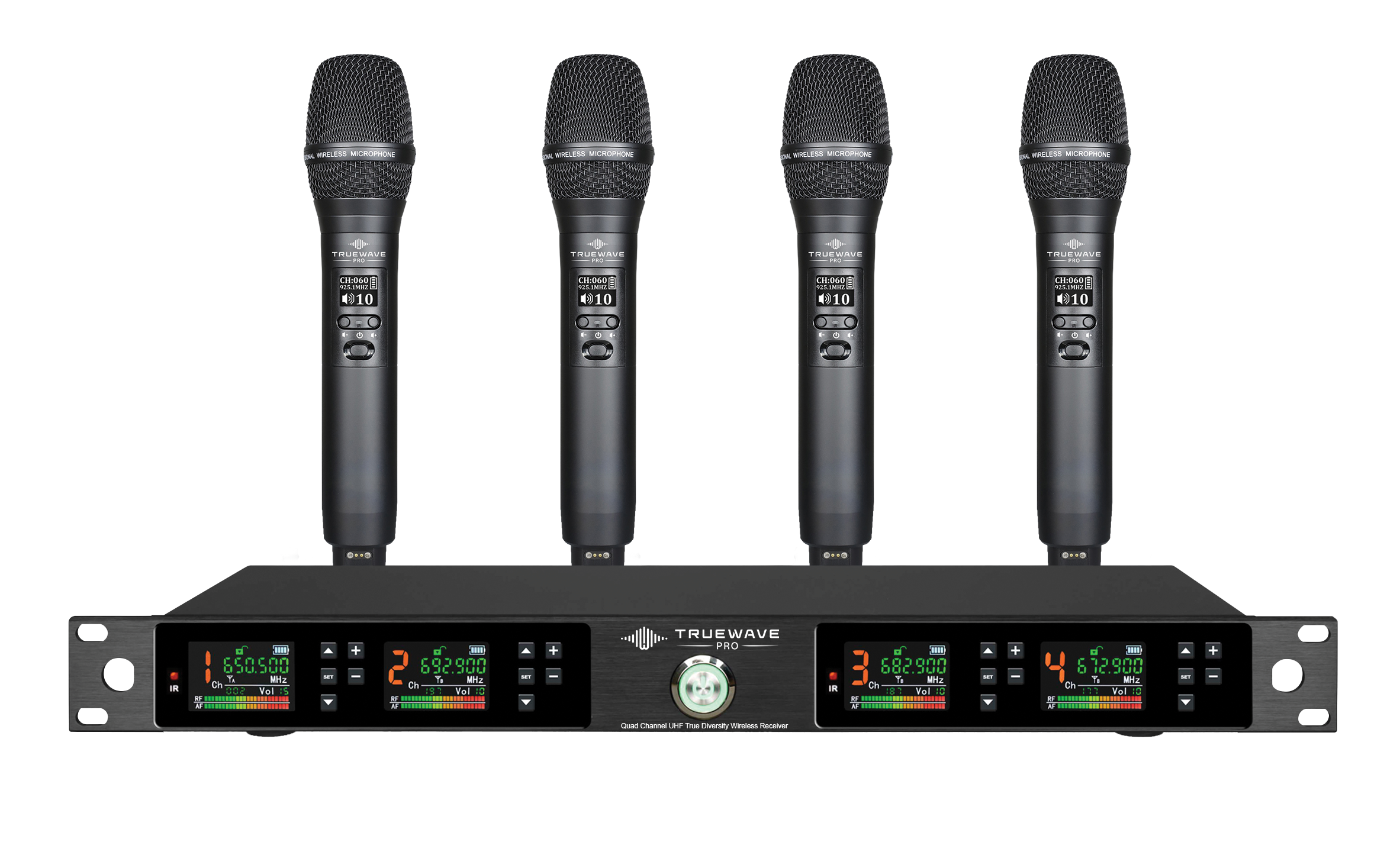

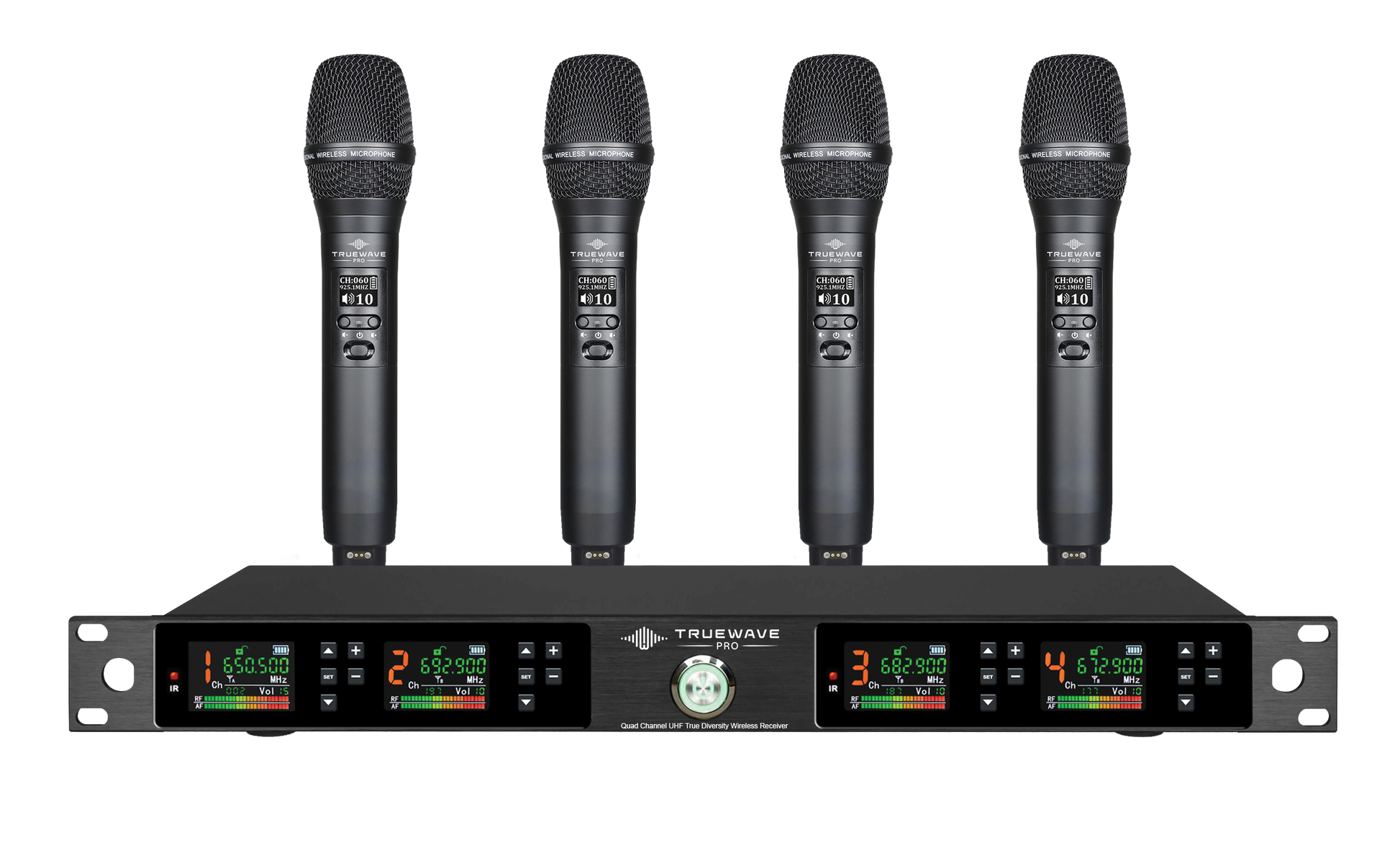

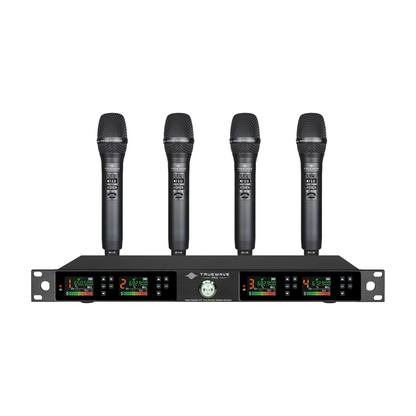

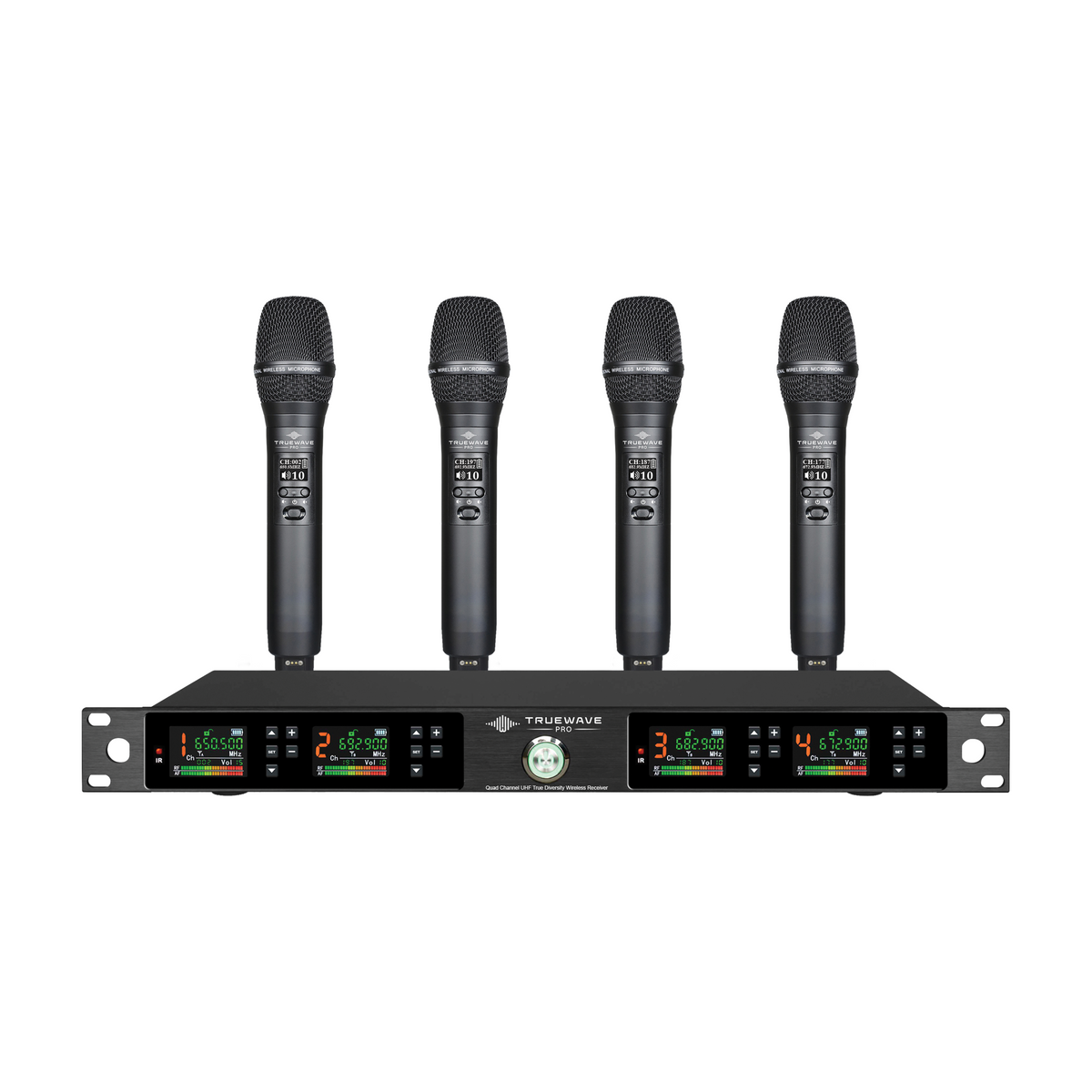

AIR-B4 Quad Channel UHF Wireless Microphone System

The AIR-B4 delivers four channels of True Diversity UHF wireless in a single 1U rackmount receiver — ideal for larger productions, houses of worship, conferences and multi-presenter events. Auto Scan finds clear frequencies fast, and IR sync pairs each microphone in seconds.

Key features

  • Quad channel — 4 x 100 selectable channels
  • True diversity reception for rock-solid RF stability

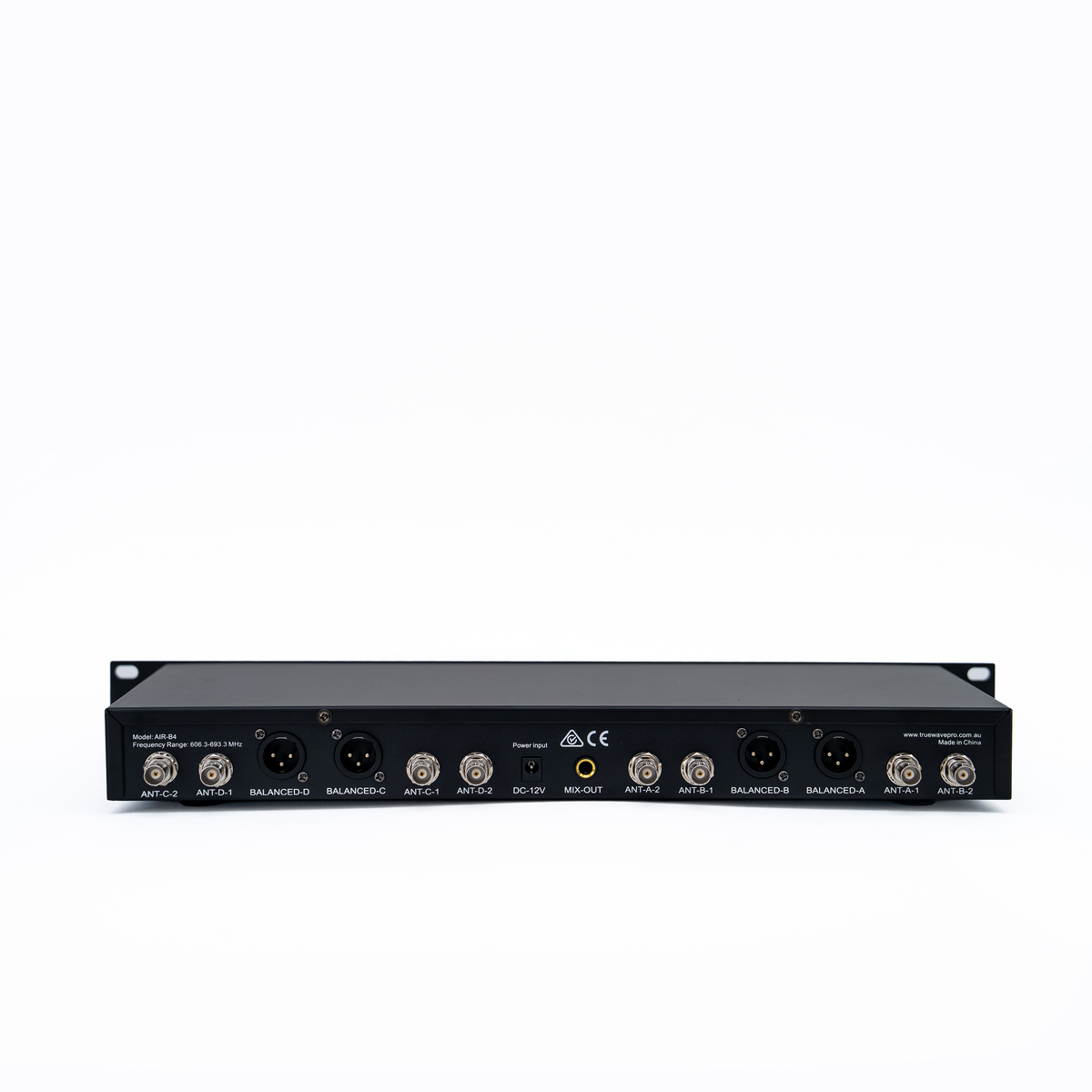

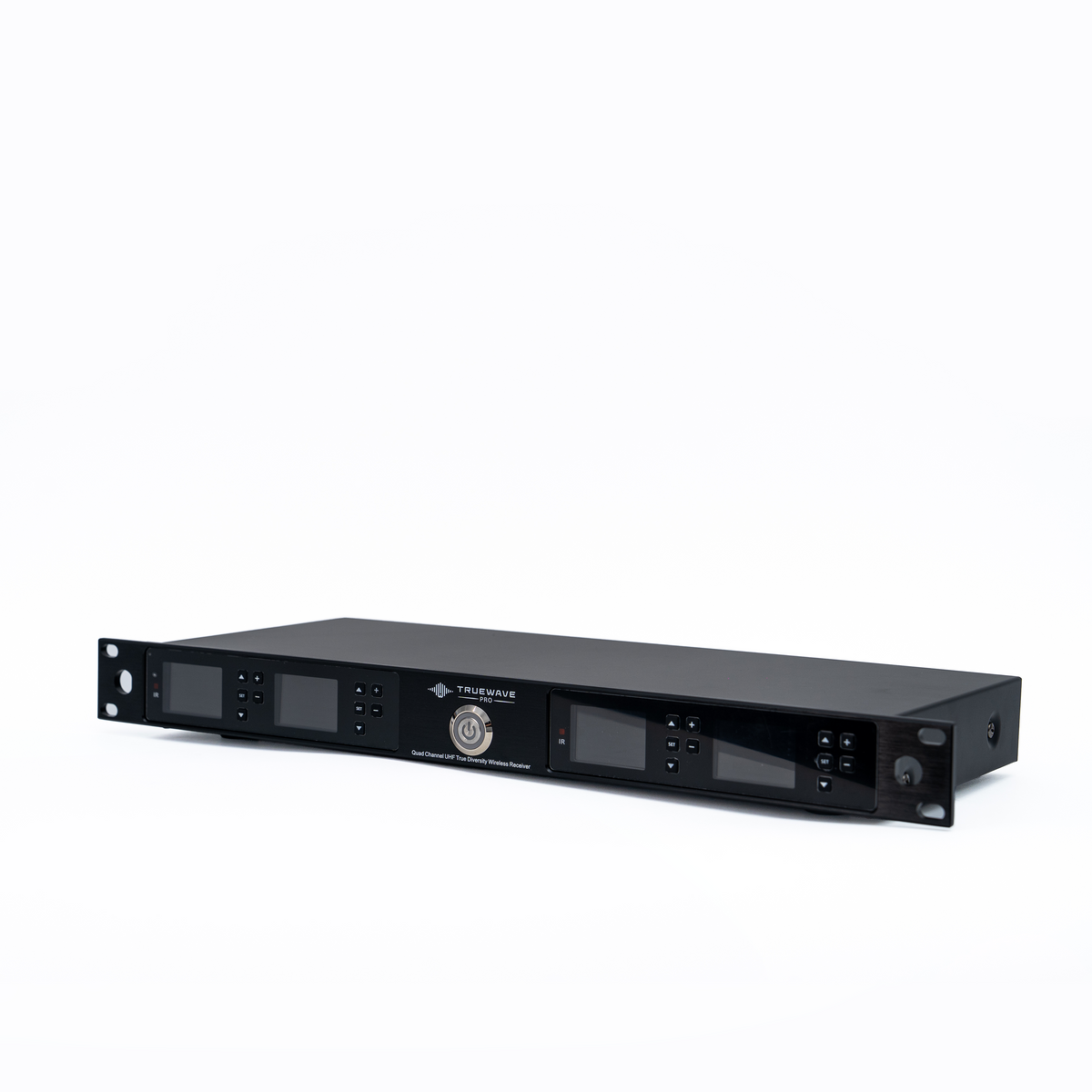

  • 1U rackmount receiver with four balanced XLR outputs plus a 6.35 mm mixed output

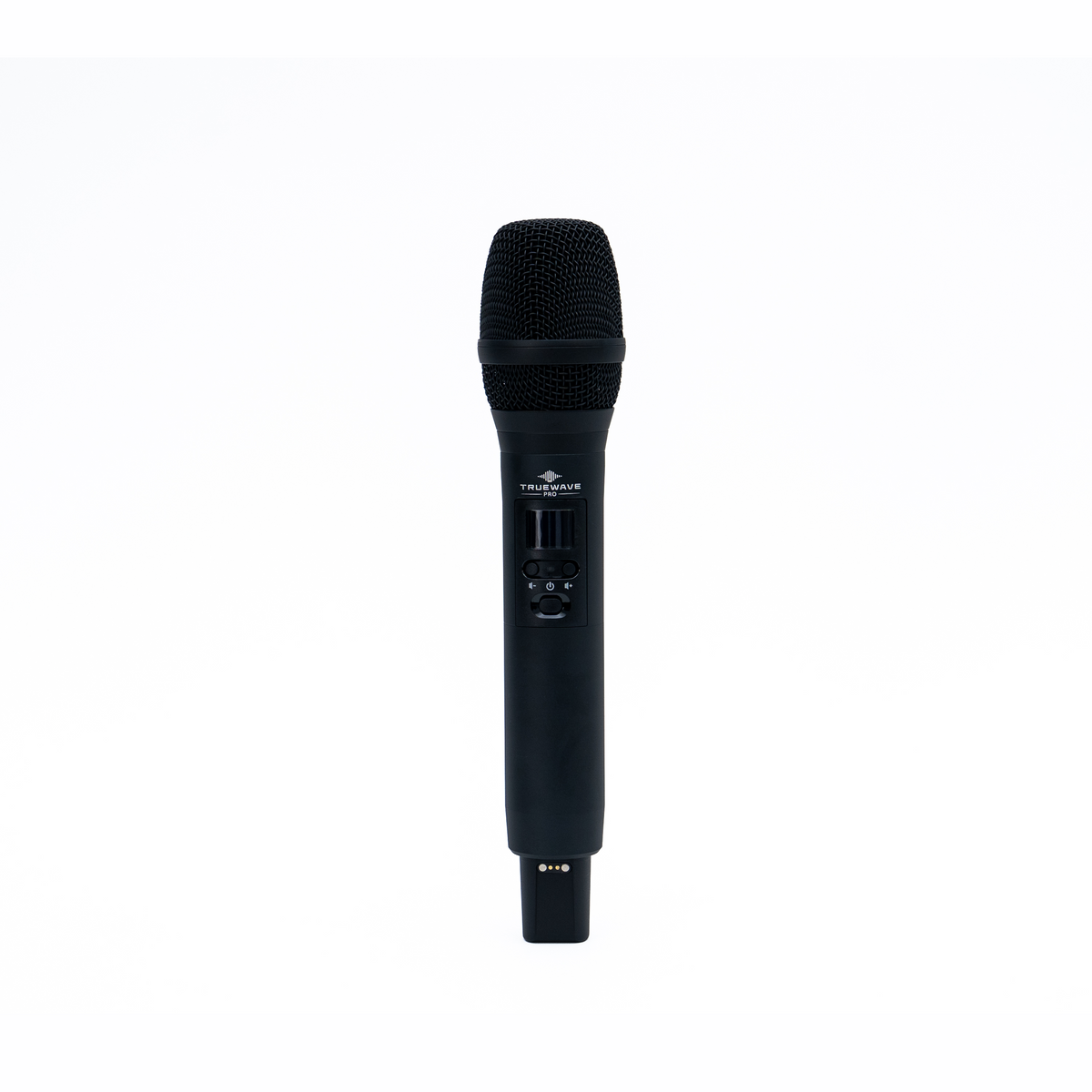

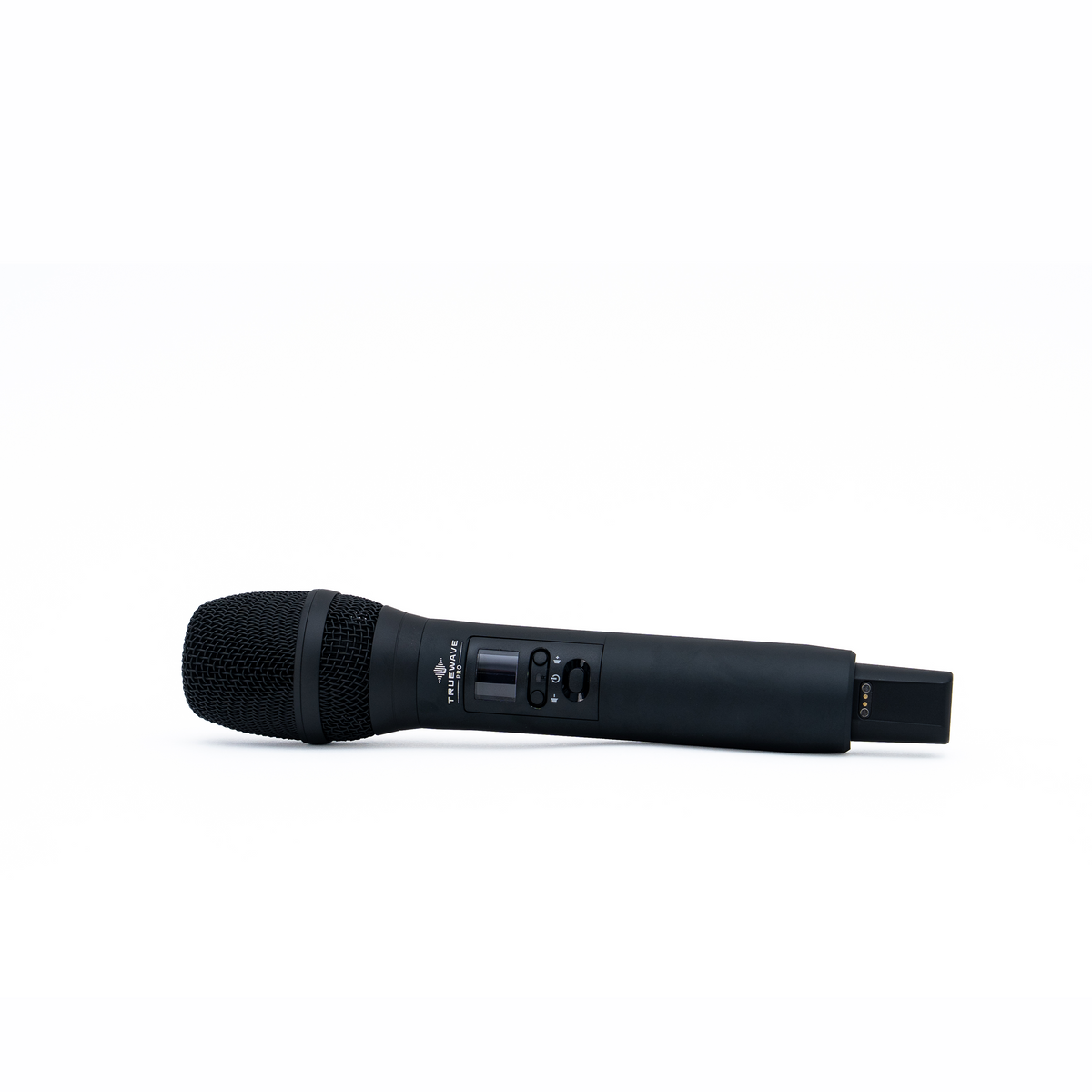

  • Four rechargeable handheld microphones
  • Auto Scan and IR synchronisation
  • Up to 100 m (approx. 330 ft) line-of-sight range

Technical specifications

Model No AIR-B4
Channels 4 (4 x 100 channels)
RF Carrier Frequency 606.3 - 693.3 MHz
Frequency Response 20 Hz - 20 kHz
Audio Dynamic Range >120 dB
Total Harmonic Distortion <0.5%
Latency <2.9 ms
Operating Range Up to 100 m (approx. 330 ft) line-of-sight
Receiver Power DC 12V
Audio Outputs 4 x XLR balanced, 1 x 6.35 mm mixed
Antenna Connector BNC
Transmitter Battery 18650 rechargeable lithium (removable)
Battery Life Approx. 10 hours
Transmission Power 1 - 10 mW (selectable)

What's in the box

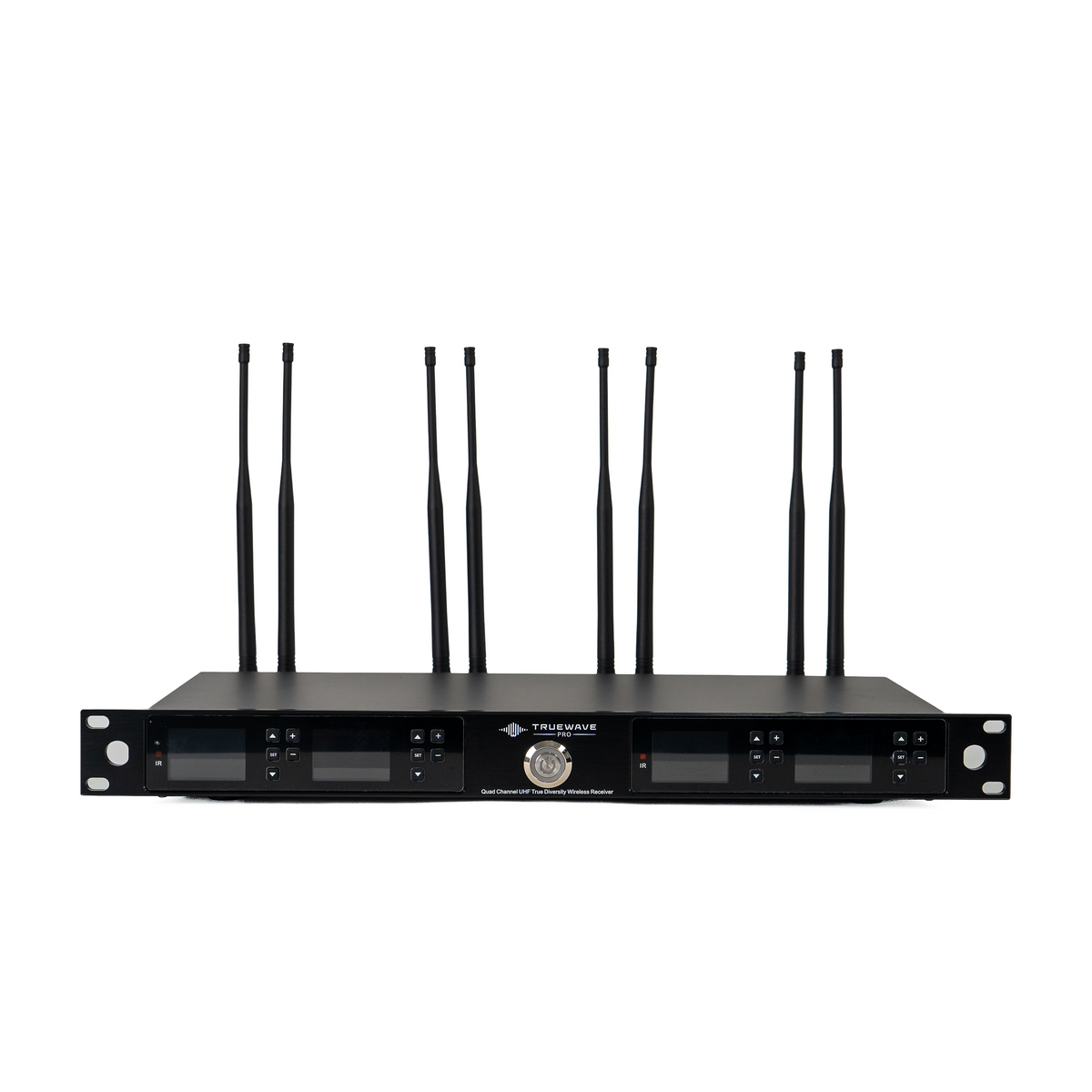

  • 1 x Quad channel UHF true diversity receiver
  • 4 x Rechargeable handheld microphones
  • 8 x Receiver antennas
  • 1 x Power adaptor for receiver
  • 4 x Magnetic charging cable
  • 1 x 6.35 mm audio cable
  • 1 x User manual
