  3. Phenyx Pro PDM34 Snare and Tom Drum Microphone, Cardioid
By Phenyx Pro

Phenyx Pro PDM34 Snare and Tom Drum Microphone, Cardioid

$84.00 NZD
$84.00 NZD
Tax included. Shipping calculated at checkout.
Spend $100.00 NZD more to reach Free Shipping!
0%
Brand: Phenyx Pro
Ships Fast from Australia: In stock
SKU: PDM34

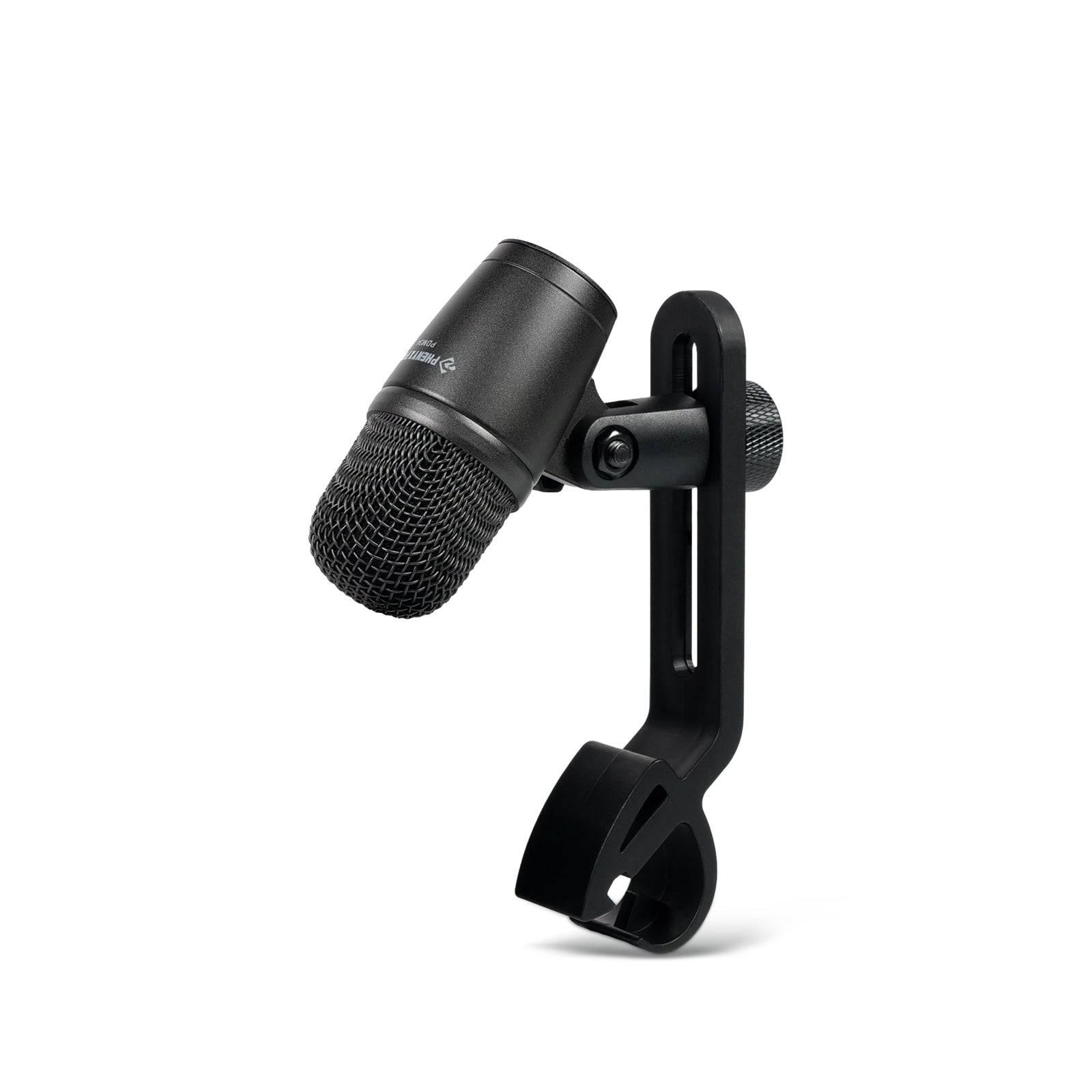

Phenyx Pro PDM34 snare and tom mic on its swivel mount, three-quarter view from the right
$84.00 NZD
$84.00 NZD

Clear Audio Capture of Drum Dynamics
The PDM34 Snare/Tom Drum Microphone boasts a cardioid pick-up pattern for focused audio capture, adeptly rejecting ambient noise. Its sleek, elegant grey design is housed within a sturdy metal casing, complemented by an integral stand mount for reliable positioning. Capable of handling extreme sound pressure levels exceeding 160dB without distortion, it offers simple handling and flexible positioning, making it an ideal choice for various audio applications.

Features
- Cardioid pick-up pattern picks up audio from the source while rejected unwanted ambient sound.
- Sleek design with elegant grey colour. Sturdy metal housing with integral stand mount.
- Handles extreme sound pressure level (over 160dB) without distortion.
- Simple handling and flexible positioning with practical clip-on microphone clamp.

Specifications

Table header PDM33 PDM34 PDM35
Type
 Dynamic (moving coil) Dynamic (moving coil) Condenser
Frequency response 20 to 16,000Hz 40 to 18,000Hz 40 to 20,000Hz
Polar Pattern Cardioid Super-cardioid
Sensitivity 0.9mV/Pa (at 1kHz) 1.8mV/Pa (at 1kHz) 3mV/Pa (at 1kHz)
Output Impedance 350Ω (at 1kHz) 50Ω (at 1kHz)
Min. Terminating Impedance 1kΩ
Connector XLR-3 XLR-3 XLR-3
Weight 318g 60g 93g
Operating Temperature -20℃ - 60℃
Relative Humidity 0 to 95%

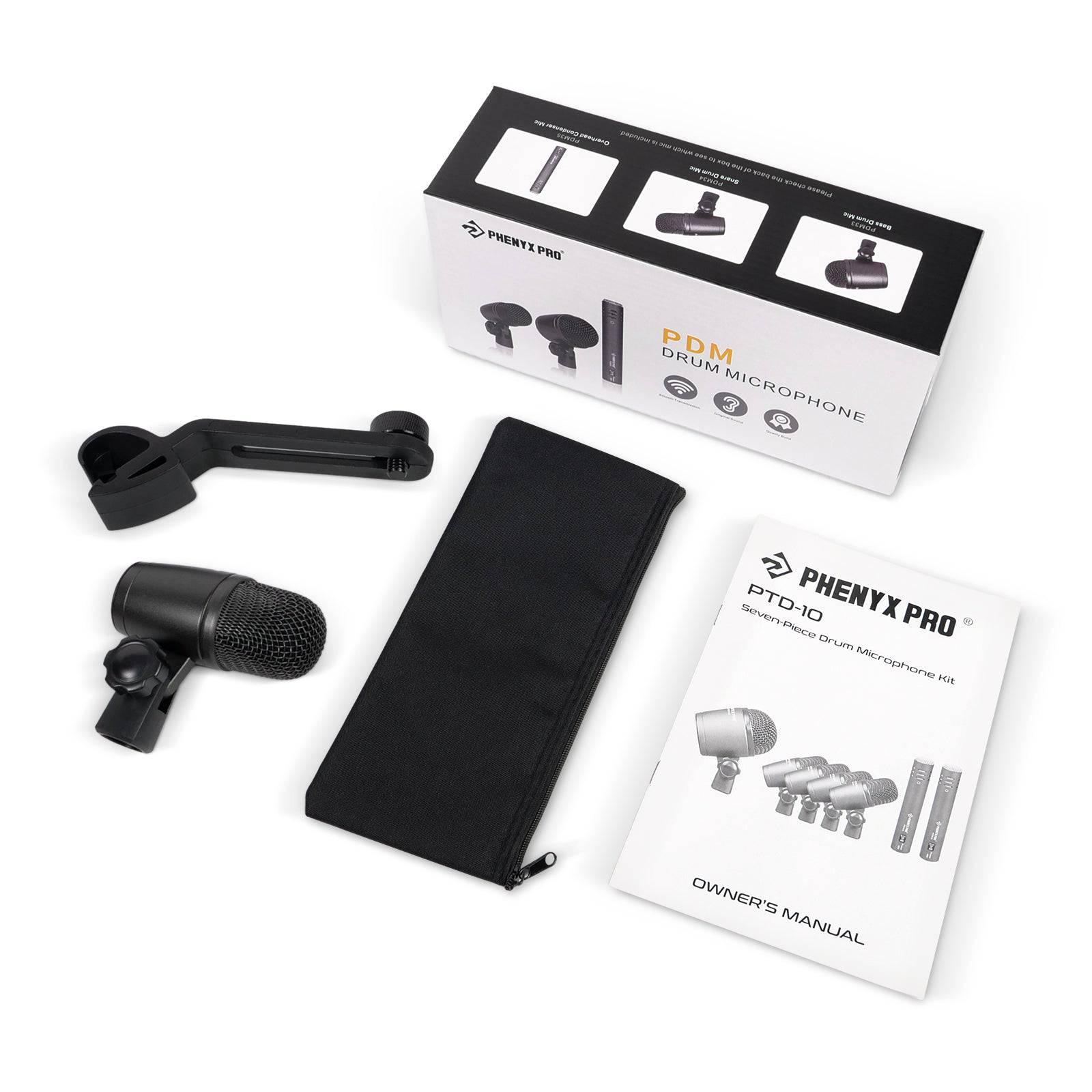

What's in the box

1 x PDM34 snare/tom drum microphone
1 x Microphone clamp
1 x Thread insert
1 x Microphone bag
1 x User manual

Phenyx Pro is a trademark of Phenyx Technology LLC. MSM AV Pty Ltd is not affiliated with, or an authorised dealer for, Phenyx Pro. This item is existing stock held in Australia and is supported by MSM AV under Australian Consumer Law.

Product Manual

Product Manual (PDF) - English

Frequently Asked Questions

Which drums is the PDM34 designed for?

Snare and rack or floor toms. It is tuned for the mid and upper range where a snare's crack and a tom's attack live. For the kick drum you want the PDM33 instead, which is built for the low end and the much higher sound pressure inside a bass drum.

How do I mount and position the PDM34 on a kit?

Aim it over the rim, two to five centimetres above the head and angled in towards the centre of the drum. Closer to the centre gives more attack, closer to the rim gives more ring. Keep it clear of the drummer's stick path, which is the usual reason a tom mic gets knocked out of position mid-set.

Does the PDM34 need phantom power?

No. It is a dynamic microphone, so it needs nothing but a balanced XLR cable into a mixer input. Dynamic capsules are the standard choice on drums because they tolerate very high sound pressure and the occasional stick strike far better than condensers.
